G Gauge Odometer

Posted by Tom on Feb 5, 2013

I just got the test boards from the PC fab house. There was 1 surprise, but wasn't hard to figure out. I'm trying to have some to show and sell in Carlyle this weekend.

It mounts in any piece of rolling stock you like. A magnet sensor goes on one of the trucks and the display goes any place you like. The thing is powered by 2 AAA batteries, which should run it in excess of 100 hours.

How far have you gone?

Altoids™ Oscilloscope

Posted by Tom on Nov 1, 2012

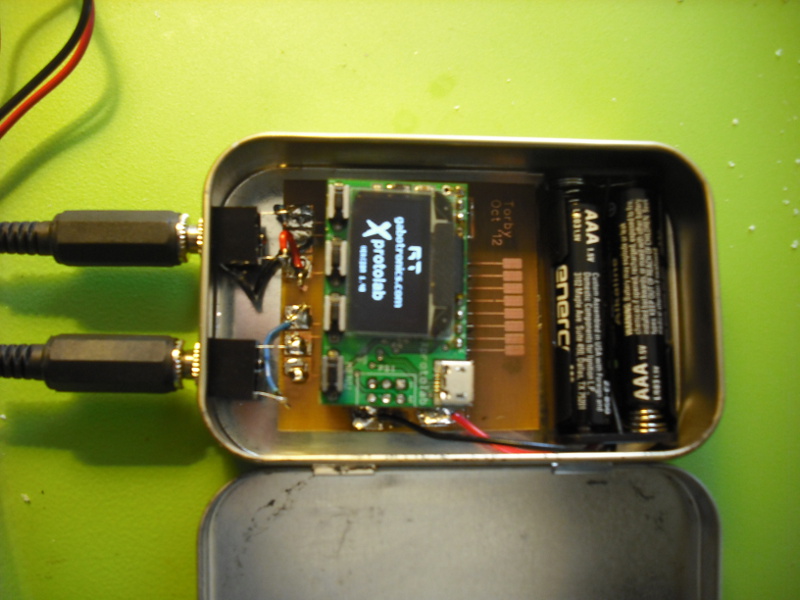

I've been using an "xProtoLab" from Gabotronics as my oscilloscope for some time. It's made to be plugged into a breadboard, but since I use smd devices, the breadboard was getting cumbersome. So I decided to put it in a case.

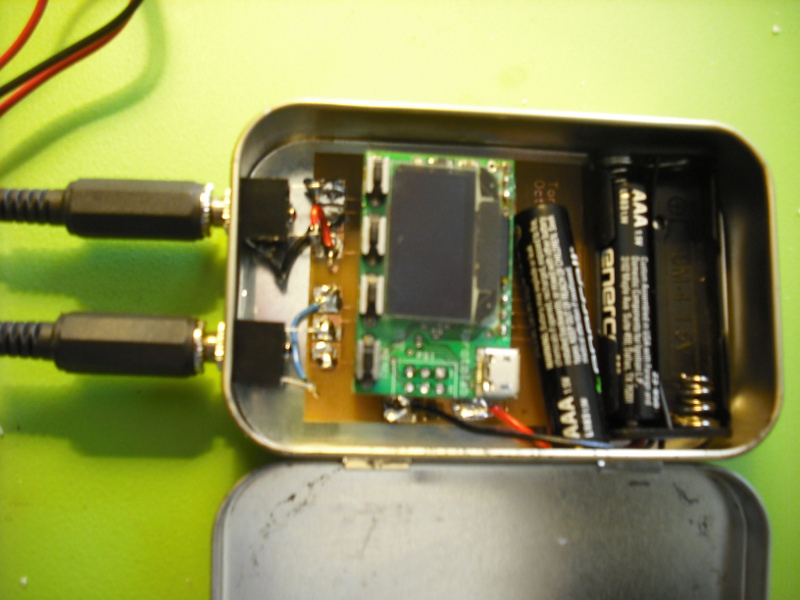

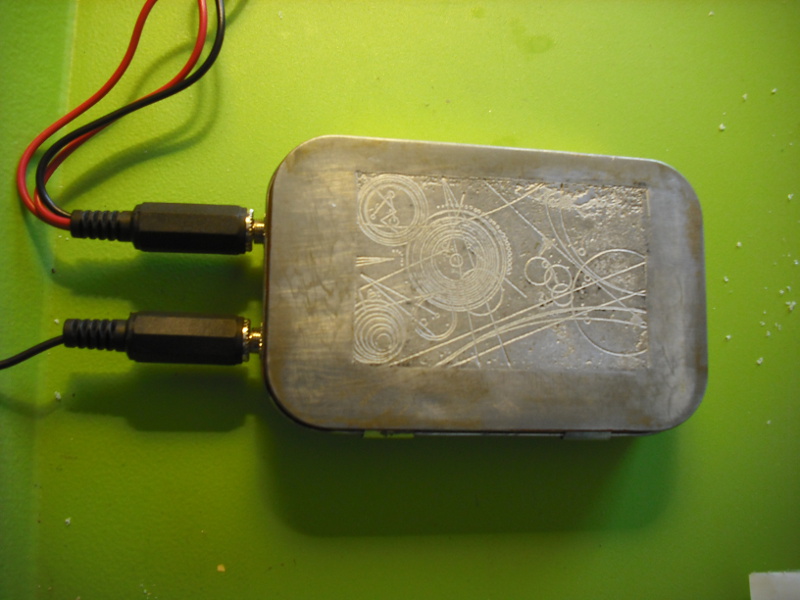

So I took an old-style Altoids™ tin with a flat lid, etched "Gallifreyan" writing into the lid, and installed a little circuit board with a 5v boost converter to power it from 2 AAA batteries.

I have it on good authority that the Gallifreyan translates to "Mine! Keepa yous hands off!"

Travel by TARDIS.
